Combination electrotherapy and ultrasound
The unique modularity found in the Intelect Advanced Therapy System allows for easy customisation.

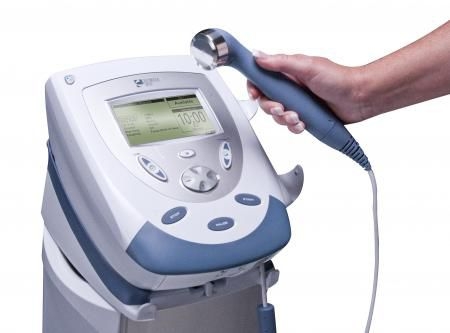

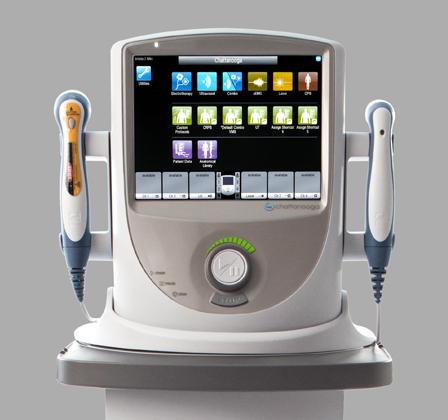

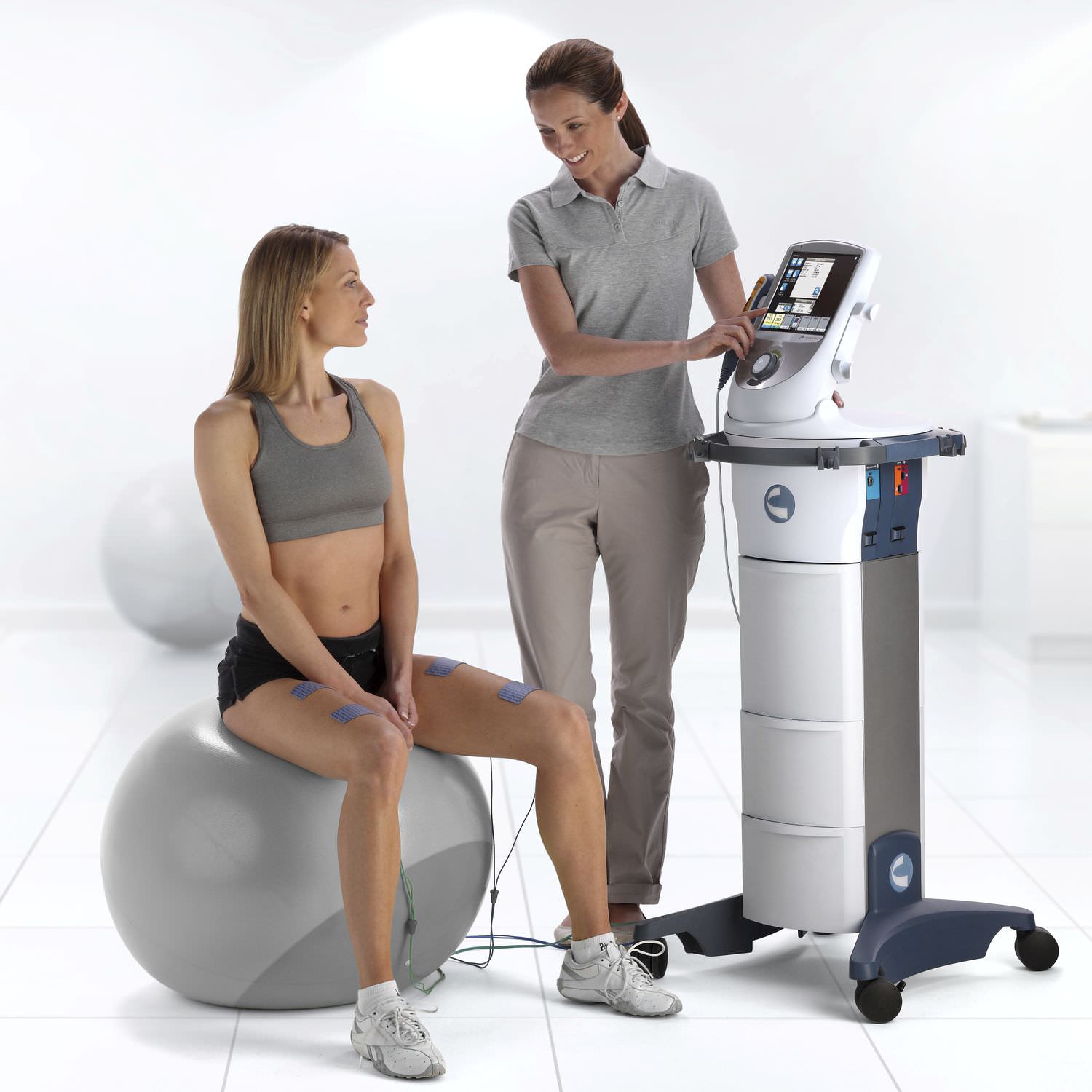

Intelect® Advanced Combo
Features
• More than 25 clinical waveforms
• 2 independent electrotherapy channels
• High resolution colour display of all screens
• Over 200 Clinical Protocols
• Over 100 User-defined protocol slots
• Over 10 Quick-Link Indications for quick parameter retrieval
• Impressive clinical library which includes full colour
graphic anatomical and pathological libraries on vibrant LCD screen
• Constant current/constant voltage modes
• Surface EMG and EMG plus stim (optional)
• Documentation of treatment outcomes with Patient Data Cards
• Sequencing to direct a designated therapeutic course without
having to modify the unit
• 1 & 3 MHz ultrasound frequencies
• Pulsed & Continuous Modes (10%, 20%, 50% & 100%)
• Variable Duty Cycles (16Hz, 48Hz & 100Hz)
• Newly redesigned ultrasound heads for improved ERA during treatment
• BNR <6:1
INFORMATION
For more information on the optional modules, please see further down this page
• Ergonomically designed sound heads in 1cm², 2cm², 5cm² & 10cm² sizes
• Sound head coupling features with both visual & audio feedback
• Head warming option on sound heads for patient comfort
• 3 year warranty
All units include as standard: Patient data card, 5cm² applicator, Nylatex
wrap, 6 x 8cm carbon electrodes and sponges (x4), Dura-Stick Plus

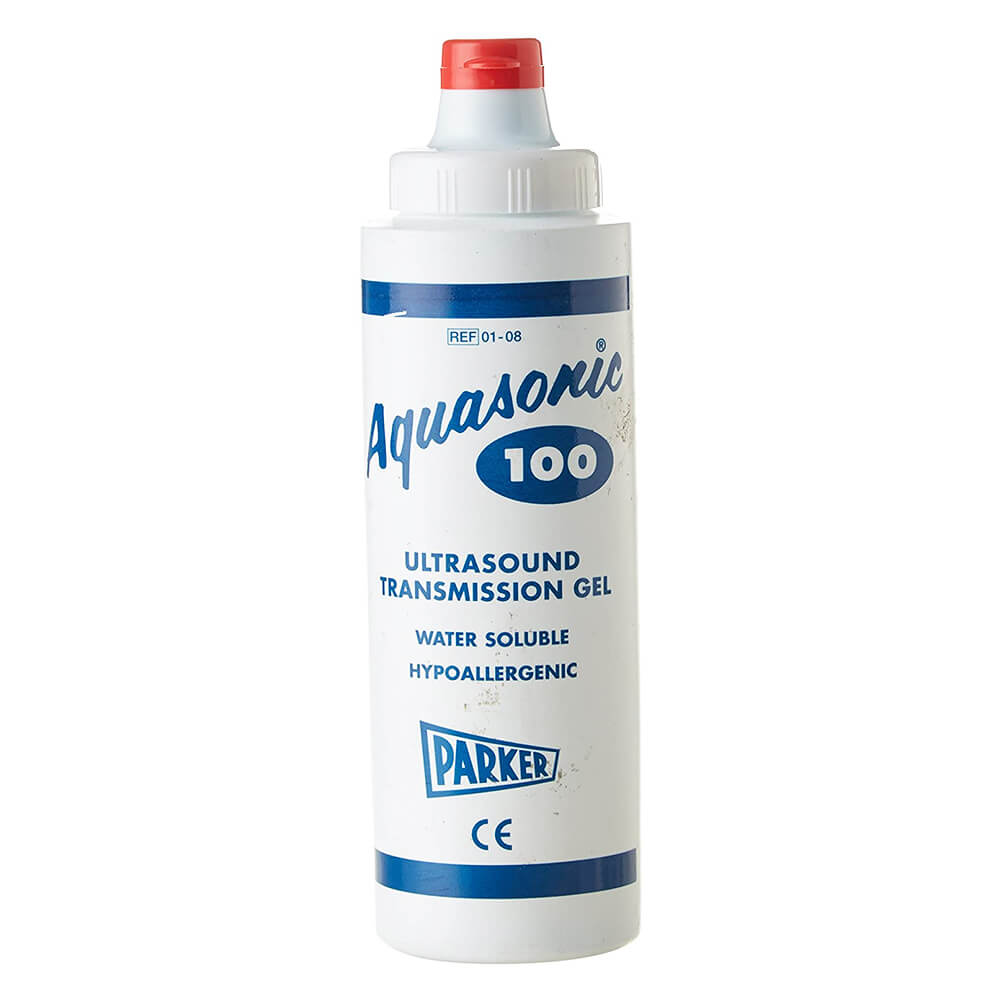

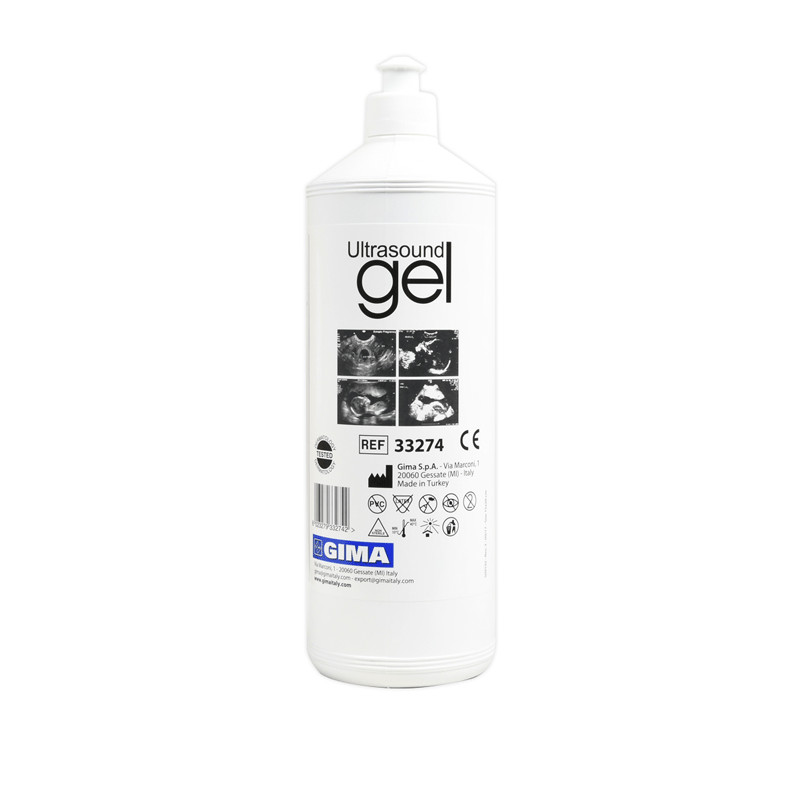

5cm round electrodes (x4), ultrasound gel and user manual. The Intelect
Advanced Colour Combo + EMG also includes sEMG and sEMG+

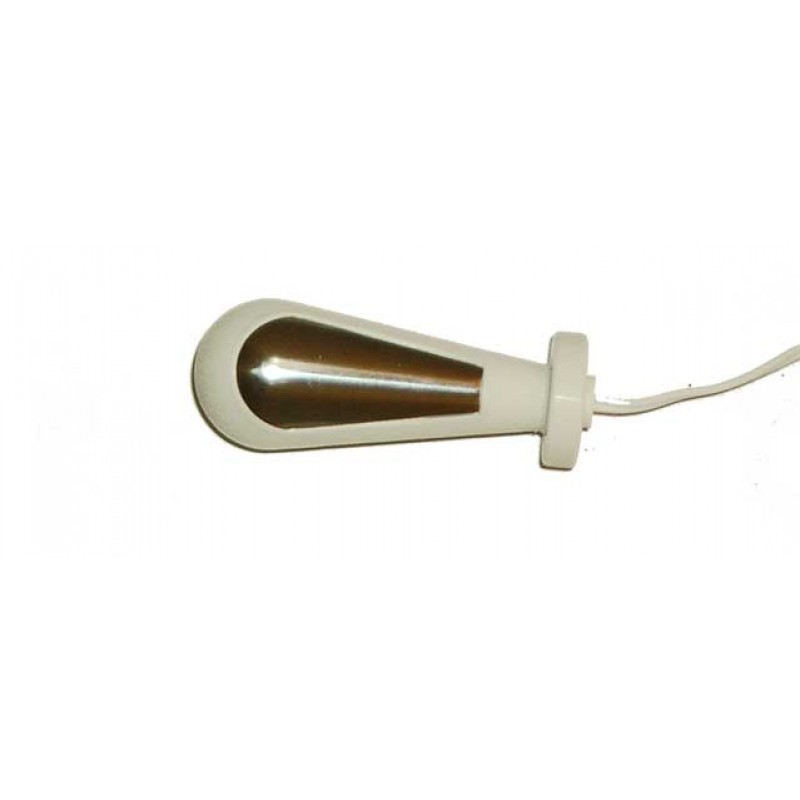

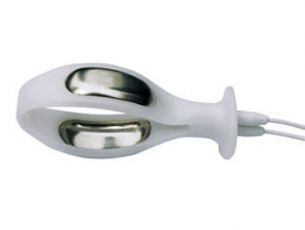

electrical stimulation module and intravaginal probe. Additional components
that can be added to the Combo base now or later with a simple upgrade
include: EMG, 2 additional channels of stimulation, laser therapy,

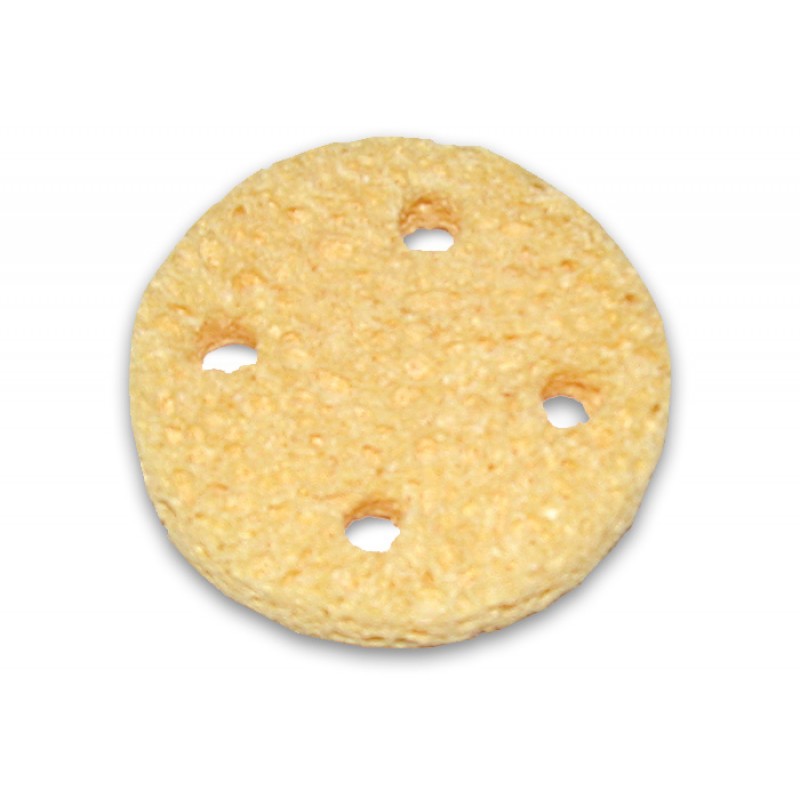

vacuum and battery.
XP Laser Unit
With Acupuncture Point Finder and Battery
This light, portable unit has all the features of the Excel and more. With built in powerful battery and acupuncture point finder this unit is completely portable yet looks good in the clinic. Designed to be used in the bag it can be easily attached by
shoulder or if required by the waist, leaving the clinicians hands free for treatment. A separate stand positions the unit perfectly on any surface and ensures completely stability and visibility in the clinic.
Size: 210 x 130 x 130mm
Weight: 2.75 kilos
Pulsing: 2.5Hz, 10Hz, 20Hz, 73Hz, 146Hz, 700Hz, 1KHz, 5KHz, and 10KHz
Battery life: cluster probe 4 hours; single probes up to 10 hours
Battery charge: 3 hours from mains
Single Probes – Infrared 915nm 1W (100mw Average)
Super pulsed 100mW ‘bone’ probe provides the power necessary to treat deeper musculoskeletal conditions and deep-seated pain. Used as a specialist probe for bone/fracture healing and for the equine patient. The rapid pulsing of the probe delivers the light more aggressively and is used particularly for chronic conditions.
Infrared 820nm 200mW, 100mW, 50mW
With removable, autoclavable tips and a range of attachments
Provide a penetrative, highly effective wavelength for soft tissue/sports injuries, pain relief and acupuncture point stimulation. Fast resolution of musculoskeletal and tendon injuries and excellent relief for arthritic, herpetic, neuralgic and
neuropathic pain. Non-needle, non-invasive acupuncture and trigger point
stimulation is widely used for a range of conditions including smoking
cessation, tinnitus and lymph oedema. Also the probe of choice for treatment of verrucae and general stimulation of immune system response. The cosmetic clinics use the probes for scarring, facial lines and wrinkles.
Laser Classification: 3B Available with the following specs
- 820nm /200mW
- – 820nm
- /100mW –
- 820nm
- /50mW –
Visible red 660nm 15mW, 675nm, 30mW
With removable, autoclavable tips and a range of attachments
Proven in extensive research to be the best wavelength for fast and effective treatment
of wounds, including diabetic, varicose, venous, neuropathic, infected non-healing ulcers and pressure sores. Also superb treatment for acne, psoriasis, herpes simplex and other
dermatological conditions. For post surgical applications scarring and healing time will be reduced.
Laser Classification: 3B
Multiple Wavelength Probes
46 and 31 Multidiode Cluster probes with removable lens for cleaning and articulated head for comfort
Combine Omega’s research into the most effective wavelengths with a practical large
areas irradiation probe combining 4 or 6 different wavelengths in one cluster probe. The synergistic effect and ease of use makes the cluster probe essential for treatment of all conditions from sports injuries to wound healing, verrucae and chronic pain.
Accessories
Accupuncture/Tinnitus attachment for single probes
Designed as a narrow beam adaptor for treatment of acupuncture points, this attachment is also the prefect size for treatment directly into the ear for tinnitus. Fibre optic fibres ensure 100% transmission of the light.
This attachment provides the conductivity for the single probes when used
with the acupuncture point finder on the 2001 and Xp base units
Goggles
Safety goggles protective for all the wavelengths used in the Omega probe range,
manufactured to EN 207 and 208 requirements, CE marked and certified in accordance with EN 166
Ultrasound and Interferential
|
|||
| Metron Vectorsonic Combi Order Code – ELEC1410The Metron Vectorsonic Combi is a Dual frequency 1 & 3MHz pulsed and continuous mode ultrasonic unit, combined with a 2/4 pole Interferential electrotherapy stimulator. The unit can be operated in three modes of operation, either as an Ultrasound, Interferential or as a Combination Therapy unit. The Interferential section of the unit offers 10 defined programmes, manual frequency sweep, vector rotation, 2/4 pole operation, all illustrated by a digital display indicating output activities and time. |
|
| Metron Accusonic Plus Order Code – ULS510The Metron Accusonic+ is a 1 & 3MHz dual frequency unit offering both outputs from one detachable dual-frequency treatment head. Complete with contact control, programmable treatments can be set and recalled if required, manual operation, pulsed and continuous modes at the press of a button Optional small dual frequency treatment Head available as an option |
|
